DC Input and Output Modules |
|||||
|
Module |
I-7044/44D |

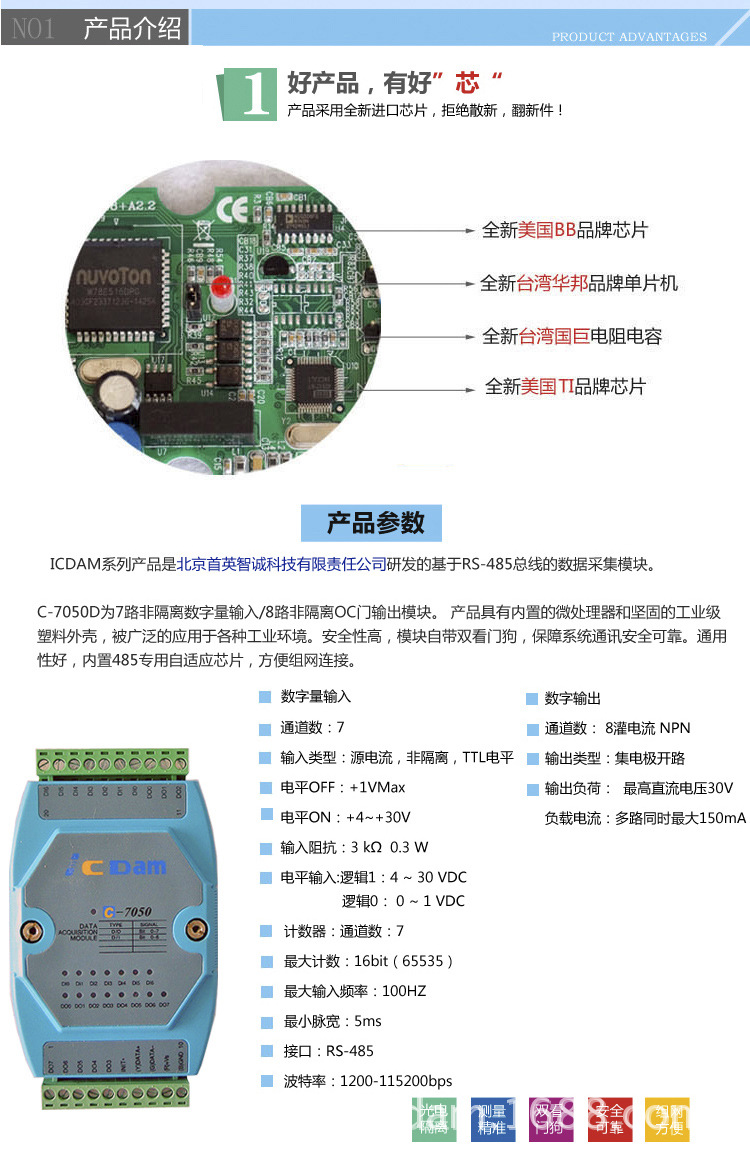

I-7050/50D |
I-7050A/50AD |
I-7055/55D M-7055/55D |
I-7055-NPN I-7055D-NPN M-7055-NPN M-7055D-NPN |
|
Output Channels |
8 (Sink) |
8 (Sink) |
8 (Source) |
8 (Source) |
8 (Sink) |
|
Output Type |
Open Collector (NPN) |
Open Collector (NPN) |
Open Collector (NPN) |
Open Source (N- MOSFET) |
Open Collector (NPN) |
|
Load Voltage |
+3.5 to +30 V |
+3.5 to +30 V |
+3.5 to +30 V |
+10 to +40 V |
+3.5 to +50 V |
|
Max Load Current |
375 mA |
30 mA |
50 mA |
650 mA |
700 mA |
|
Short-Circuit Protection |
No |
No |
No |
Yes |
Yes |
|
Isolation Voltage |
3750 Vrms |
Non-Isolated |
Non-Isolated |
3750 Vrms |
3750 Vrms |
|
Input Channels |
4 (Sink/Source) |
7 (Source) |
7 (Sink) |
8 (Sink/Source) |
8 (Sink/Source) |
|
Input Type |
Isolated with Common Source |
Non-Isolated |
Non-Isolated |
Dry Contact and Wet Contact |
Dry Contact and Wet Contact |
|
ON Voltage Level |
+4 to +30 V |
+4 to +30 V |
+4 to +30 V |
+10 to +50 V |
+10 to +50 V |
|
OFF Voltage Level |
+1 V Max. |
+1 V Max. |
+1 V Max. |
+4 V Max. |
+4 V Max. |
|
Input Impedance |
3K Ohms |
- |
- |
10K Ohms |
10K Ohms |
|
solation Voltage |
3750 Vrms |
Non-Isolated |
Non-Isolated |
3750 Vrms |
3750 Vrms |
|
Modbus RTU |
|
|
|
M-7055/55D |
M-7055-NPN M-7055D-NPN |
|
Power Requirement |
+10 to +30 V |
||||
|
Power Consumption |
0.6 W for I-7044 1.2 W for I-7044D |
0.4 W for I-7050 1.2 W for I-7050D |
1.0 W for I-7050A 1.8 W for I-7050AD |
1.0 W for I-7050A 1.8 W for I-7050AD |
1.2 W for I-7055-NPN/ M-7055-NPN 2.2 W for I-7055D-NPN/ M-7055D-NPN |
|
Operating Temperature |
-25 °C to +75 °C |
-25 °C to +75 °C |
-25 °C to +75 °C |
-25 °C to +75 °C |
-25 °C to +75 °C |
|
Storage Temperature |
-30 °C to +75 °C |
-30 °C to +75 °C |
-30 °C to +75 °C |
-30 °C to +75 °C |
-30 °C to +75 °C |
|
